Motiva Entrada™

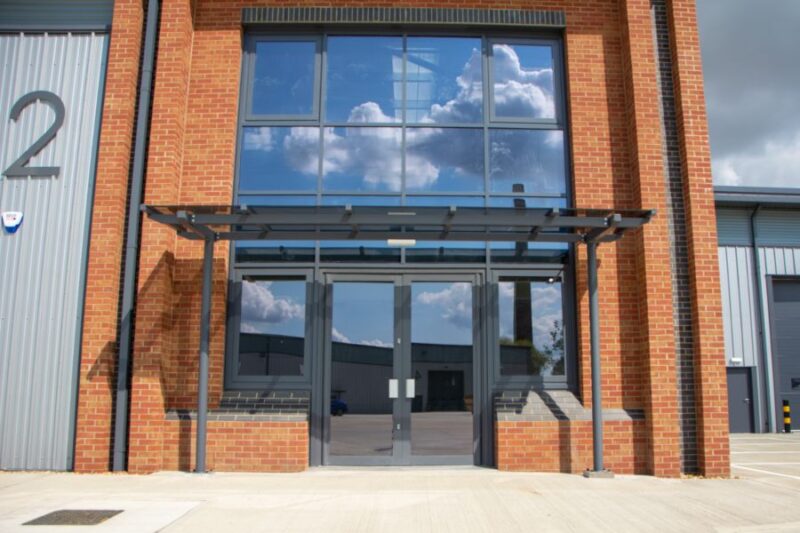

The ‘Entrada’ is the latest entrance canopy from the Motiva range. This modern design with its angled roofline and integral gutter will give any visitor the best first impression whatever the building. The freestanding design has been developed in association with architects and builders looking for a sleek design that doesn’t rely on the building steelwork, interfere with brickwork or breach the thermal performance of the building envelope.

  • Modern straight roof design
  • Solid steel framework
  • Polycarbonate or glass roofing
  • Finished in Dura-coat™
  • Manufactured to suit your entrance

Specification

MATERIALS
Structure – All steel
Roofing – Polycarbonate or glass
Finish – Galvanised only or Dura-coat™ colour finish

DIMENSIONS
Typical projection for the Motiva Entrada™ is 1200mm/1500mm/1800mm. Virtually any length is available with post centres at around 4000mm. In all instances please enquire – we can accommodate nearly any situation.

OPTIONS
– Side panels with various infill options
– Clear, opal or coloured roofing
– Aluminium guttering and downpipes
– Wall brackets
– Wide span beams
– CHS uprights
– Post pads

SPECIFICATION CLAUSE
To supply and install to manufacturer’s recommendations: Motiva – Entrada™ canopy to overall size —- mm X —- mm (or as per drawing no——-) to include for clear/opal/coloured roof, Alu-Tuff™ gutters and downpipes all in Dura-coat™ finish to RAL——- as manufactured by A&S Landscape, March Way, Battlefield Enterprise Park, Shrewsbury, SY1 3JE   T:01743 444100   E:[email protected]

Appearance

Polycarbonate or glass roof covering is either clear or opal as standard or coloured at extra cost. The Motiva Entrada™ canopy steelwork is finished in Dura-coat™ colour finish to any RAL colour. The aluminium gutters and downpipes on these entrance canopies are finished to match.

Services

A&S Landscape’s team recommend early consultation in order to consider all aspects of the proposed entrance canopy installation. The team will provide free quotations and technical information at the design stage. Drawing files of all details will also be supplied which can be easily incorporated into architects’ drawings. Full site surveys, CAD drawings and project management are all part of our standard service. Early technical involvement can generally provide a better solution.

BESPOKE PRODUCTS
Our ability to extensively customise our products ensures that we can meet any special requirements that customers may have for bespoke products. Our modular system often allows this to be done very economically whilst retaining the performance characteristics of our system.

Standard Steel Colours (Any RAL colour available)

White
- RAL NO. 9010

Signal Yellow
- RAL NO. 1003

Brown Red
- RAL NO. 3011

Traffic Red
- RAL NO. 3020

Squirrel Grey
- RAL NO. 7000

Ultramarine Blue
- RAL NO. 5002

Gentian Blue
- RAL NO. 5010

Sapphire Blue
- RAL NO. 5003

Slate Grey
- RAL NO. 7015

Moss Green
- RAL NO. 6005

Signal Green
- RAL NO. 6032

Jet Black
- RAL NO. 9005

Polycarbonate Colours

Clear Polycarbonate

Transparent

Opal Polycarbonate

Opal

Request your copy of our 160 page brochure

Get in touch to request a copy of our full, 160 page, hardback brochure with all the information you need to make the right choice.
