Maxima Plaza™

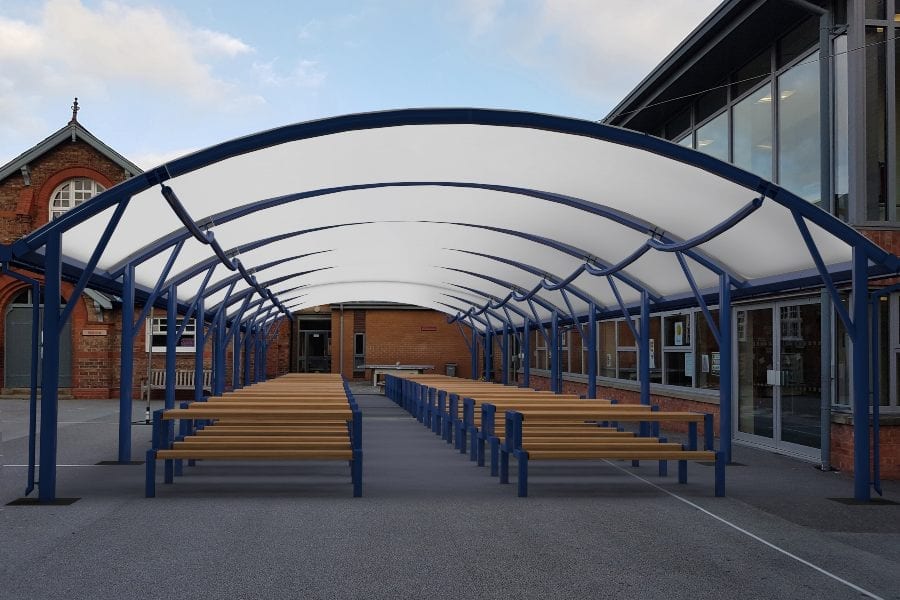

The ‘Maxima Plaza™ ’ is our widespan barrel vault fabric canopy structure typically in duopitch (symmetric) curved roof variant - this is where both sides are at the same height, the most common configuration for standalone curved structures. Widths of 10000mm are easily achieved and wider still with additional design features. Ideal for covered dining areas, social spaces, sporting or play areas.
- Symmetric curved roof design
- Solid steel framework
- Heavy-duty fabric roofing
- Finished in Dura-coat™ finish
- Wide range of sizes
Specification
MATERIALS
Structure – All steel
Roofing – Heavy-duty waterproof fabric
Finish – Galvanised only or Dura-coat™ colour finish
DIMENSIONS
Virtually any available as required however the Maxima Plaza™ is ideal for wider free spanning applications, standard bay lengths are at 5000mm increments but any length is possible. Please enquire in all instances – we can accommodate nearly every situation.
OPTIONS
– Side panels with various infill options
– Aluminium guttering and downpipes
– Post pads
SPECIFICATION CLAUSE
To supply and install to manufacturer’s recommendations: Maxima Plaza™ canopy to overall size —- mm X —- mm (or as per drawing no——-) to include for Alu-Tuff™ gutters and downpipes all in Dura-coat™ finish to RAL——- as manufactured by A&S Landscape, March Way, Battlefield Enterprise Park, Shrewsbury, SY1 3JE T:01743 444100 E:[email protected]
Appearance
Steelwork on the Maxima Plaza™ canopy is finished in Dura-coat™ colour finish to any RAL colour. The aluminium gutters and downpipes are also finished to match. Heavy-duty fabric roof is white as standard. Post pads can be any colour, often contrasting with the structure.
Services
The A&S Landscape service includes full site surveys, CAD drawings and project management as standard. We would recommend early consultation in order to consider all aspects of the proposed installation. Early technical involvement can generally provide a better solution. We provide free quotations and technical information at the design stage with drawing files of all details which can be easily incorporated into architects’ drawings.
BESPOKE PRODUCTS
Our ability to extensively customise our products ensures that we can meet any special requirements that you may have. Our flexible modular system often allows this to be done very economically whilst retaining the performance characteristics of our systems.
Standard Steel Colours (Any RAL colour available)
White
- RAL NO. 9010
Signal Yellow
- RAL NO. 1003
Brown Red
- RAL NO. 3011
Traffic Red
- RAL NO. 3020
Squirrel Grey
- RAL NO. 7000
Ultramarine Blue
- RAL NO. 5002
Gentian Blue
- RAL NO. 5010
Sapphire Blue
- RAL NO. 5003
Slate Grey
- RAL NO. 7015
Moss Green
- RAL NO. 6005
Signal Green
- RAL NO. 6032
Jet Black
- RAL NO. 9005
Maxima Plaza™ Waterproof Fabric Colours
White
- RAL NO. 9010
Accreditations
