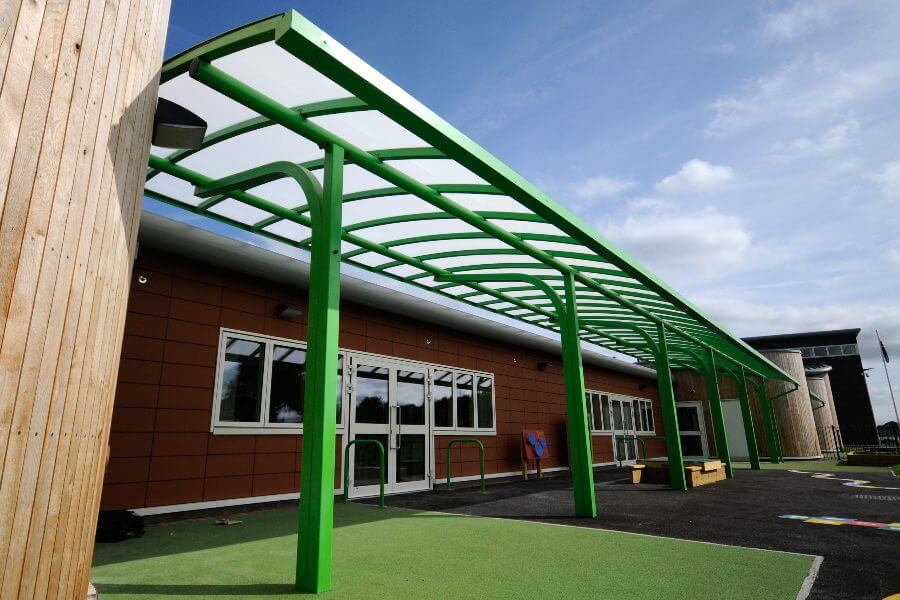

  • Ysgol Bro Alun Curved Roof Canopy

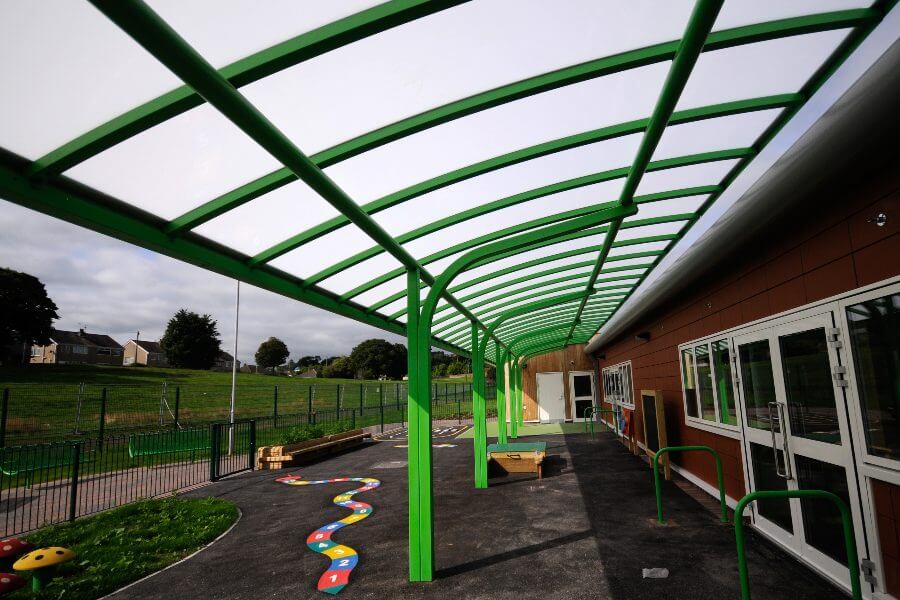

  • Green Curved Roof Cantilever Canopy
  • Billing Brook Academy Cantilever Canopy

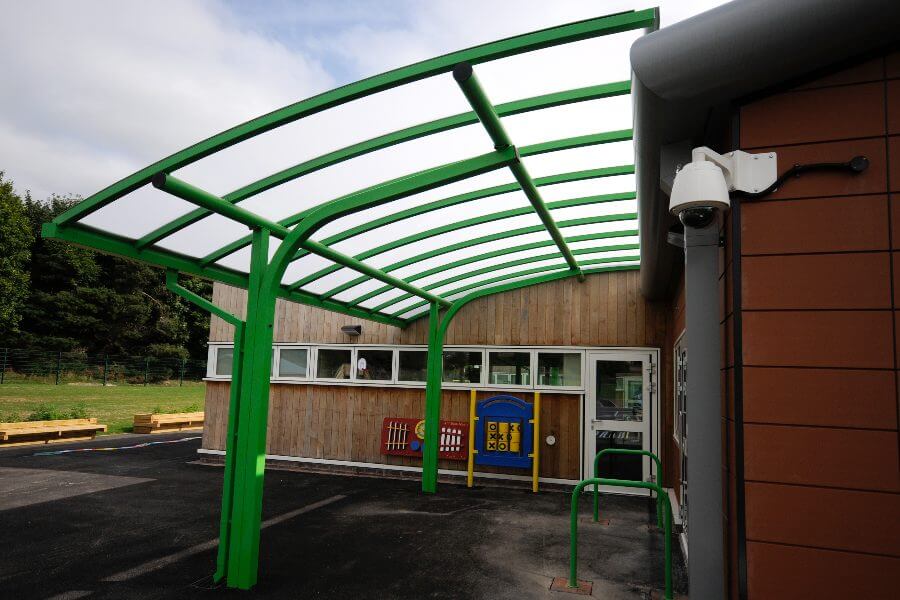

  • Green Curved Roof Cantilever Shelter
  • Shelton Infants School Cantilever Canopy
  • Green Cantilever Playground Canopy
  • Blue Straight Roof Cantilever Canopy
  • Ysgol Bro Alun Curved Roof Canopy
  • Green Curved Roof Cantilever Canopy
  • Billing Brook Academy Cantilever Canopy
  • Green Curved Roof Cantilever Shelter
  • Shelton Infants School Cantilever Canopy
  • Green Cantilever Playground Canopy
  • Blue Straight Roof Cantilever Canopy

Motiva Cantilever™

The 'Cantilever' is a further Motiva variant; normally Mono in design but it can be Duo, Linear or Wave. Back, front or central upright options make this particularly useful for play areas and covered walkways and also where doors or other obstructions restrict upright locations.

  • Curved or straight roof design
  • Uprights back, front or centre
  • Solid steel framework
  • Genuine polycarbonate roofing
  • Finished in Dura-coat™ finish

Specification

MATERIALS
Structure – All steel
Roofing – Genuine polycarbonate
Finish – Galvanised only or Dura-coat™ colour finish

DIMENSIONS
Virtually any dimensions available. The most cost-effective total widths for the Motiva Cantilever™ canopy are: 2000mm, 3000mm, 4000mm – Standard lengths are at 700mm increments. Post centres are typically 4000mm (up to 5000mm). In all instances please enquire – we can accommodate nearly any situation.

OPTIONS
– Side panels with various infill options
– Clear, opal and coloured roofing
– Aluminium guttering and downpipes
– Wall brackets
– Wide span beams
– CHS uprights l Post pads

SPECIFICATION CLAUSE
To supply and install to manufacturer’s recommendations: Motiva Cantilever™ canopy to overall size —- mm X —- mm (or as per drawing no——-) to include for clear/opal/coloured roof, Alu-Tuff™ gutters and downpipes all in Dura-coat™ finish to RAL——- as manufactured by A&S Landscape, March Way, Battlefield Enterprise Park, Shrewsbury, SY1 3JE   T:01743 444100   E:[email protected]

Appearance

Steelwork on the Motiva Cantilever™ canopy is finished in Dura-coat™ colour finish to any RAL colour. Aluminium gutters and downpipes are finished to match. Polycarbonate roof covering is either clear or opal as standard or coloured at extra cost. Post pads can be any colour, often contrasting with the structure.

Services

Here at A&S Landscape, we recommend early consultation to consider all aspects of the proposed canopy installation, we provide free quotations and technical information at the design stage with drawing files of all details which can be easily incorporated into architects’ drawings. Full site surveys, CAD drawings and project management are all part of our standard service. Early technical involvement can generally provide a better solution.

BESPOKE PRODUCTS
Our ability to extensively customise our products ensures that we can meet any special requirements that you may have. Our flexible modular system often allows this to be done very economically whilst retaining the performance characteristics of our system.

Standard Steel Colours (Any RAL colour available)

White
- RAL NO. 9010

Signal Yellow
- RAL NO. 1003

Brown Red
- RAL NO. 3011

Traffic Red
- RAL NO. 3020

Squirrel Grey
- RAL NO. 7000

Ultramarine Blue
- RAL NO. 5002

Gentian Blue
- RAL NO. 5010

Sapphire Blue
- RAL NO. 5003

Slate Grey
- RAL NO. 7015

Moss Green
- RAL NO. 6005

Signal Green
- RAL NO. 6032

Jet Black
- RAL NO. 9005

Polycarbonate Colours

Violet

Violet

Mint Polycarbonate

Mint

Lagoon Blue Polycarbonate

Lagoon Blue

Mandarin Coloured Polycarbonate

Mandarin

Daffodil Polycarbonate

Daffodil

Foxglove Polycarbonate

Foxglove

Poppy Polycarbonate

Poppy Red

Moondust Polycarbonate

Moondust

Clear Polycarbonate

Transparent

Opal Polycarbonate

Opal
