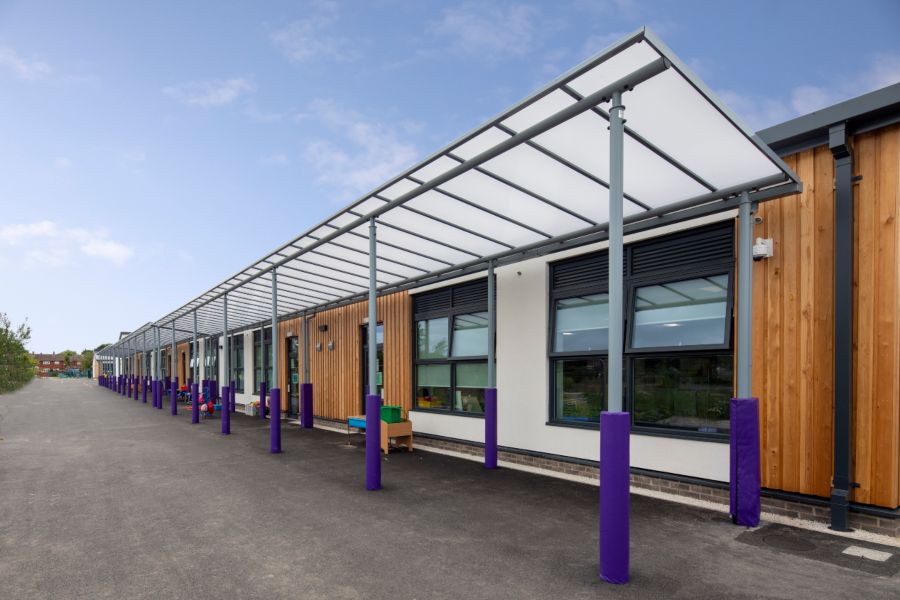

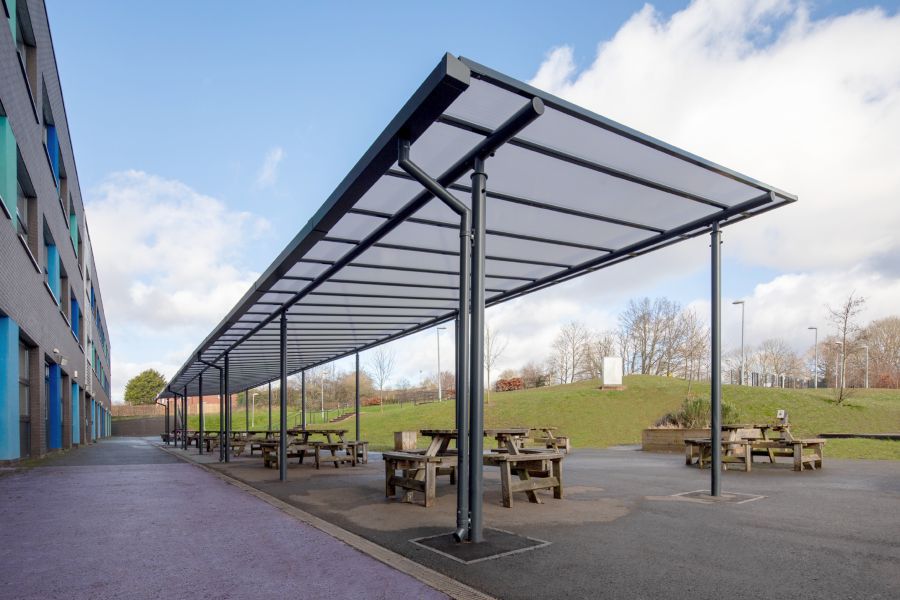

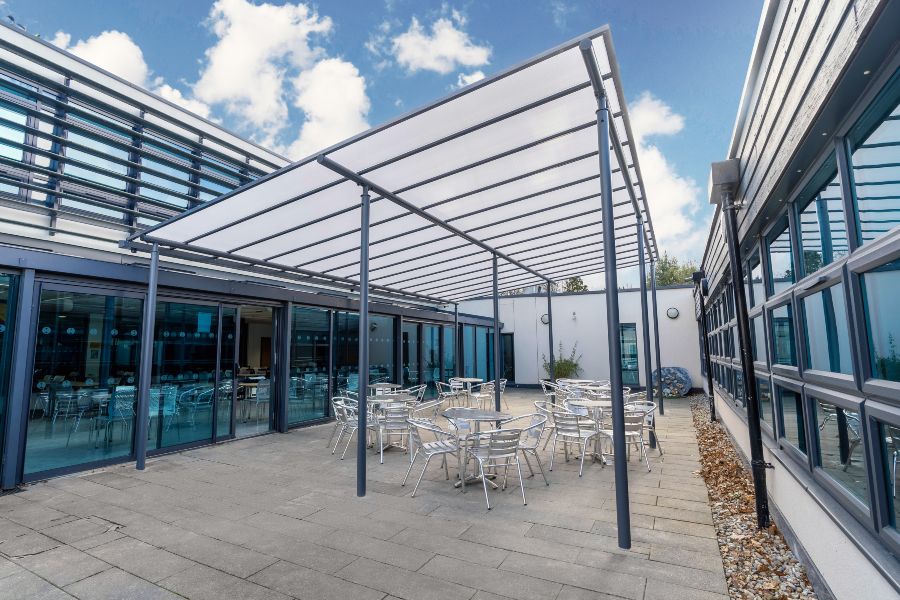

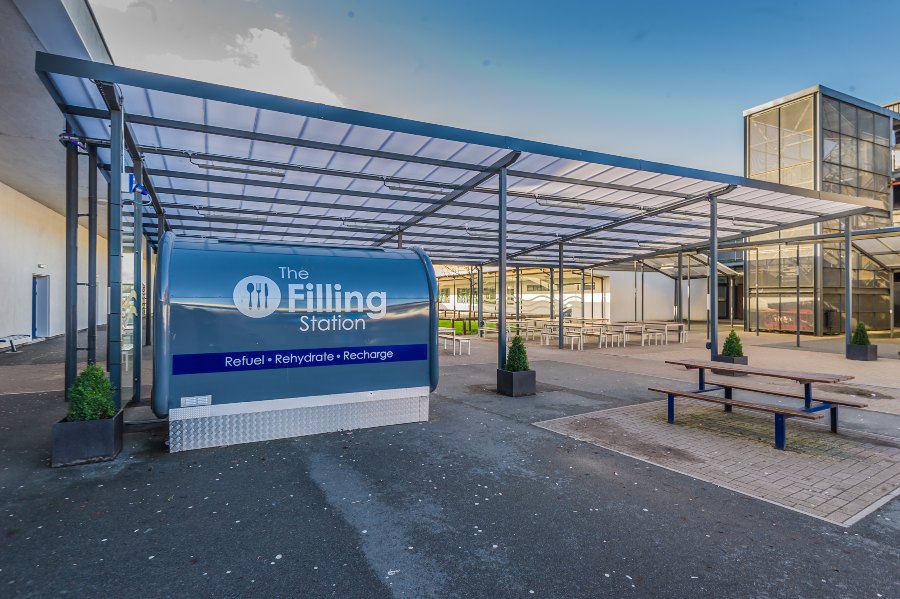

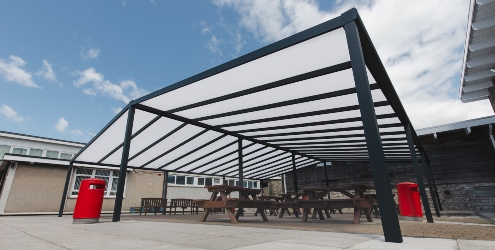

The ‘Linear’ is our monopitch (asymmetric) straight roof variant - this is where one side is higher than the other, the standard configuration for canopies located against building elevations but also used for many applications including walkways and outdoor dining areas. Widths of 10000mm are easily achieved and wider still with additional design features.
- Straight roof design
- Solid steel framework
- Finished in Dura-coat™ finish
- Class ‘B’ to ACR (M) 001:2005
- Euroclass - EN13501-1 2006 B-s1, d0
Structure – All steel
Roofing – Polycarbonate
Finish – Galvanised only or Dura-coat™ colour finish
Virtually any dimensions are available with the Motiva Linear™, most cost-effective widths are 2000mm, 3000mm, 4000mm, 5000mm, 6000mm. Standard lengths are at 700mm increments but any length is possible. Post centres are typically 4000mm (up to 5000mm). In all instances please enquire – we can accommodate nearly any situation.

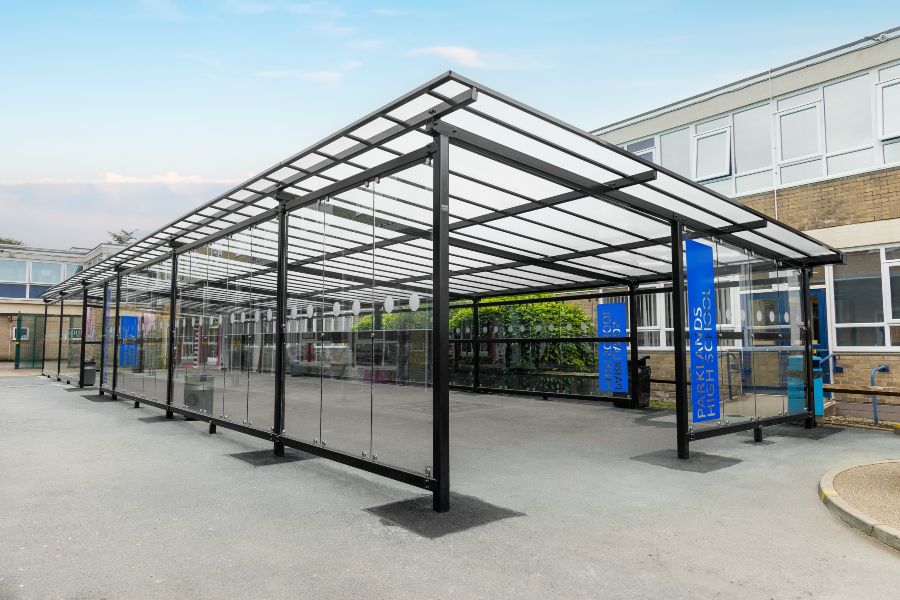

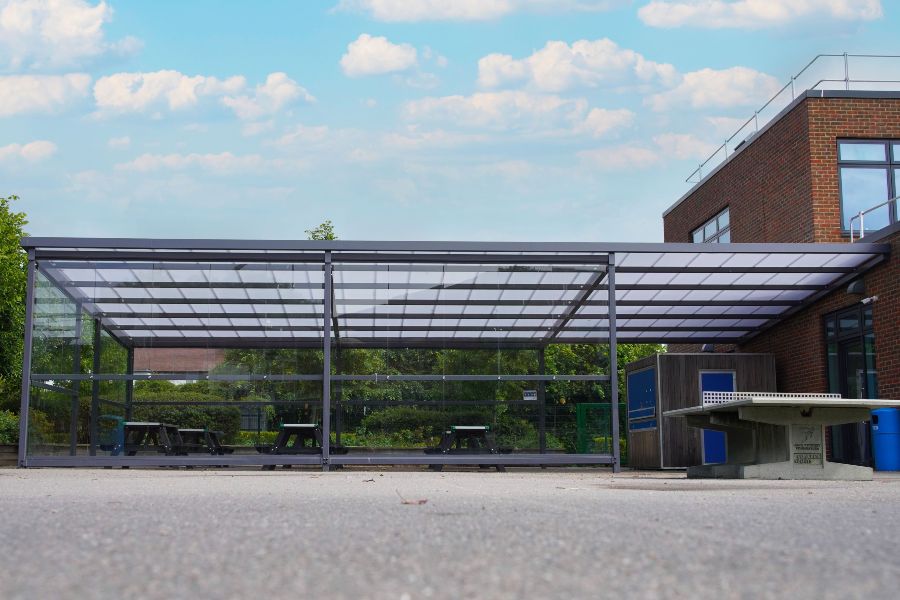

– Side panels – various infill options

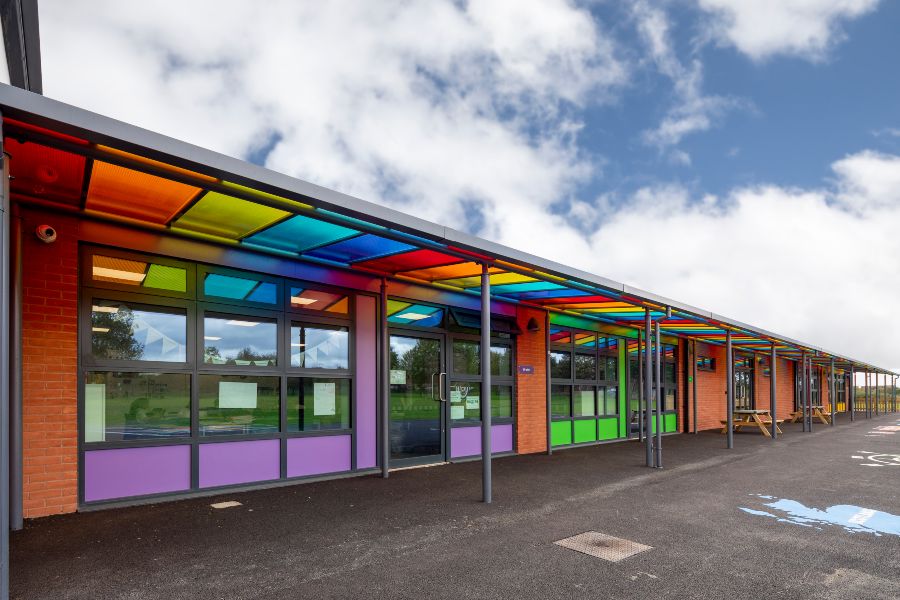

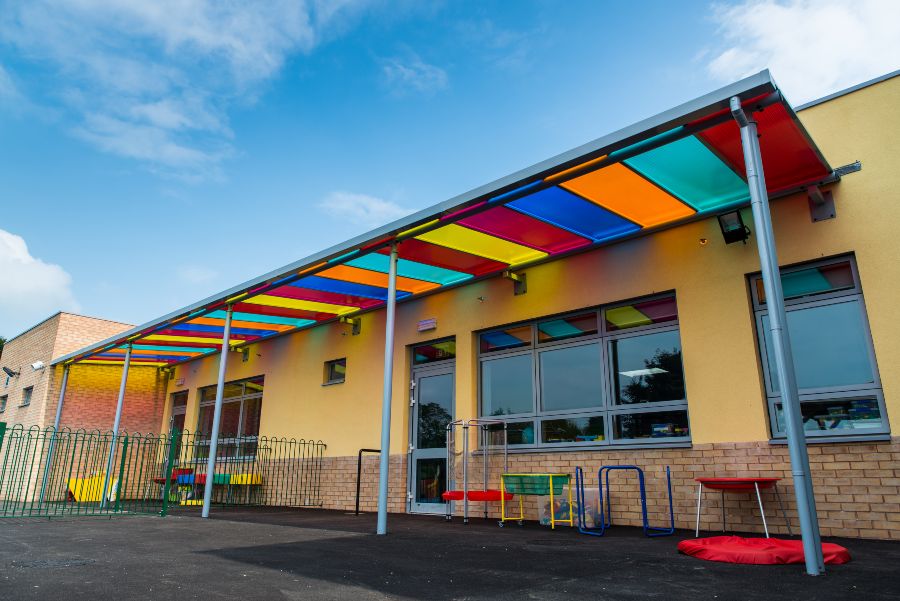

– Clear, opal and coloured roof
– Aluminium guttering and downpipes
– Wall brackets
– Wide span beams
– CHS uprights
To supply and install to manufacturer’s recommendations: Motiva Linear™ canopy to overall size —- mm X —- mm (or as per drawing no——-) to include for clear/opal/coloured roof, Alu-Tuff™ gutters and downpipes all in Dura-coat™ finish to RAL——- as manufactured by A&S Landscape, March Way, Battlefield Enterprise Park, Shrewsbury, SY1 3JE T:01743 444100 E:[email protected]
Steelwork on the Motiva Linear™ canopy is finished in Dura-coat™ colour finish to any RAL colour. Aluminium gutters and downpipes on the Motiva Linear™ canopy are finished to match. Polycarbonate roof covering is either clear or opal as standard or coloured at extra cost. Post pads can be any colour, often contrasting with the structure.
If you are considering the Motiva Linear™ canopy we would recommend an early consultation to consider all aspects of the proposed canopy installation, we provide free quotations and technical information at design stage with drawing files of all details which can be easily incorporated into architects’ drawings. Full site surveys, CAD drawings and project management are all part of our standard service. Early technical involvement in projects can generally provide a better solution.
Bespoke products are possible due to our ability to extensively customise our products ensures that we can meet any special requirements that you may have. Our flexible modular system often allows this to be done very economically whilst retaining the performance characteristics of our system.
Standard Steel Colours (Any RAL colour available)
- RAL NO. 9010
- RAL NO. 1003
- RAL NO. 3011
- RAL NO. 3020
- RAL NO. 7000
- RAL NO. 5002
- RAL NO. 5010
- RAL NO. 5003
- RAL NO. 7015
- RAL NO. 6005
- RAL NO. 6032
- RAL NO. 9005
