Motiva Mono™

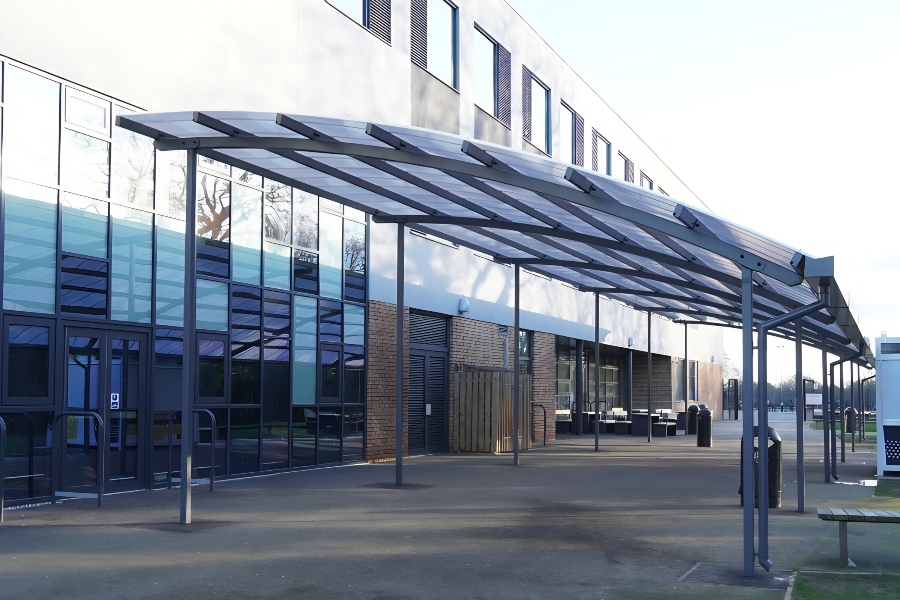

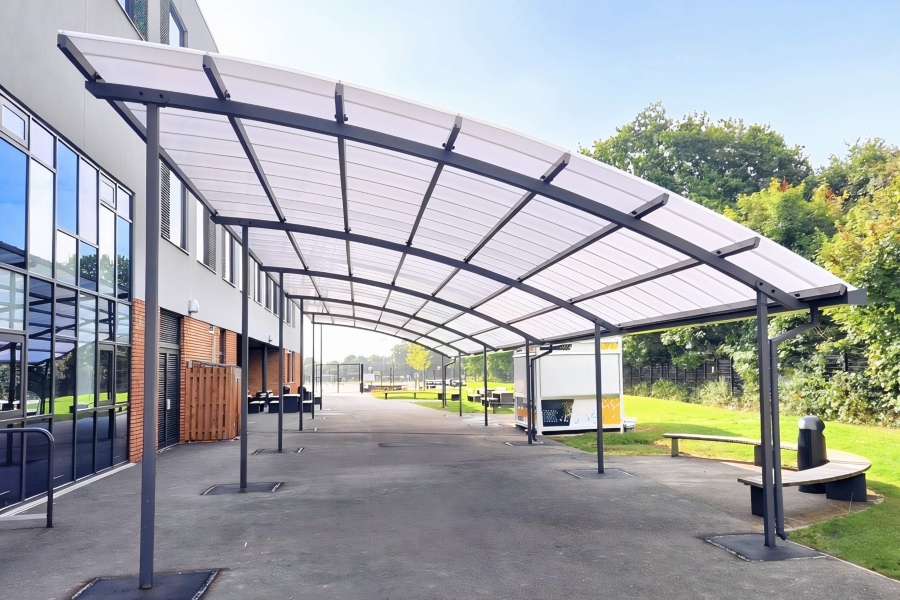

The ‘Mono’ is our monopitch (asymmetric) curved roof variant - this is where one side of the roof is higher than the other, the standard configuration for canopies located against building elevations. Widths of 10000mm are easily achieved and wider still with additional design features. Popular applications include covered walkways, play area canopies and outdoor dining areas.

  • Solid Steel Structure
  • Genuine Polycarbonate Roof
  • Finished in Dura-coat™ colour finish
  • Alu-Tuff™ Guttering

Specification

MATERIALS
Structure – All steel
Roofing – Polycarbonate
Finish – Galvanised only or Dura-coat™ colour finish

DIMENSIONS
Virtually any available, most cost-effective widths for the Motiva Mono™ canopy are in metre increments. Standard lengths are at 700mm increments but any length is possible. Post centres are typically 4000mm (up to 5000mm). If you require different dimensions then in all instances please contact us ‐ we can accommodate nearly any situation.

OPTIONS
– Side panels with various infill options
– Clear or opal roofing
– Aluminium guttering and downpipes
– Wall brackets
– Wide span beams
– CHS uprights
– Post pads

SPECIFICATION CLAUSE
To supply and install to manufacturer’s recommendations: Motiva Mono™ canopy to overall size —- mm X —- mm (or as per drawing no——-) to include for clear/opal roof, Alu-Tuff™ gutters and downpipes all in Dura-coat™ finish to RAL——- as manufactured by A&S Landscape, March Way, Battlefield Enterprise Park, Shrewsbury, SY1 3JE   T:01743 444100   E:[email protected]

Appearance

Steelwork on the Motiva Mono™ canopy is finished in Dura-coat™ colour finish to any RAL colour. Aluminium gutters and downpipes are finished to match. The polycarbonate roof covering is available in either clear or opal as standard. Post pads can be any colour, often contrasting with the structure.

Services

A&S Landscape’s standard service includes full site surveys, CAD drawings and project management. We recommend early consultation to consider all aspects of the proposed installation, we provide free quotations and technical information at the design stage with drawing files of all details which can be easily incorporated into architects’ drawings. We have found that early technical involvement can often improve design and aesthetics and reduce cost.

BESPOKE PRODUCTS
Our flexible modular system often allows us to extensively customise our products very economically whilst retaining the performance characteristics of our system.

Standard Steel Colours (Any RAL colour available)

Anthracite Grey
- RAL NO. 7016

White
- RAL NO. 9010

Signal Yellow
- RAL NO. 1003

Brown Red
- RAL NO. 3011

Traffic Red
- RAL NO. 3020

Squirrel Grey
- RAL NO. 7000

Ultramarine Blue
- RAL NO. 5002

Gentian Blue
- RAL NO. 5010

Slate Grey
- RAL NO. 7015

Moss Green
- RAL NO. 6005

Signal Green
- RAL NO. 6032

Jet Black
- RAL NO. 9005

Polycarbonate Colours

Clear Polycarbonate

Transparent

Opal Polycarbonate

Opal

Accreditations

Our Accreditations

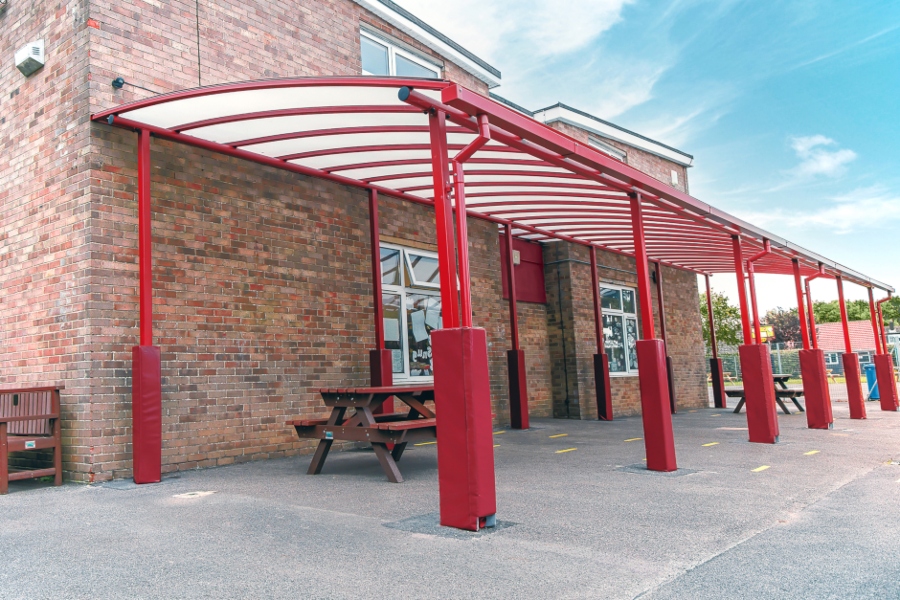

Playground shelter we made for Covingham Park Primary School

Get in touch to request a copy of our latest brochure with all the information you need to make the right choice.
