Motiva Duo™

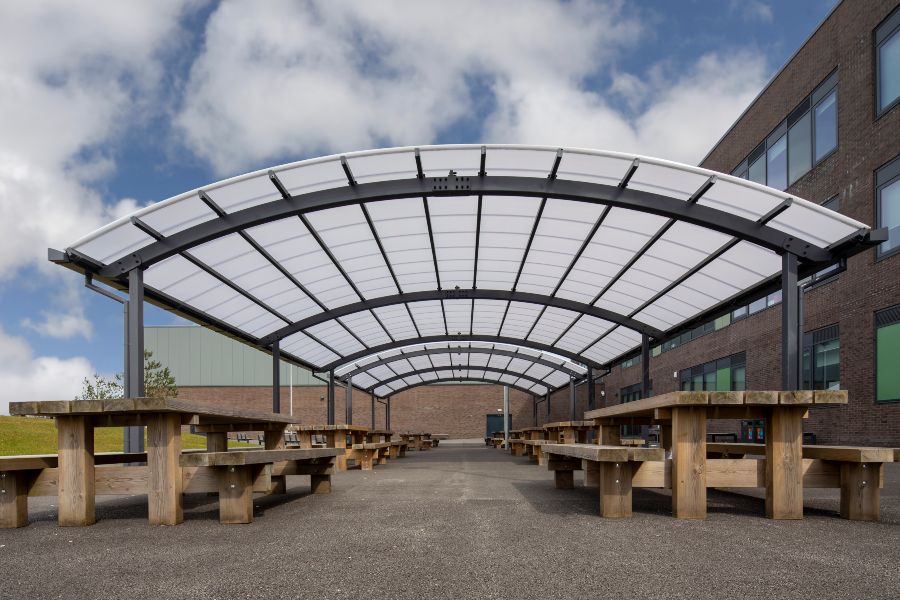

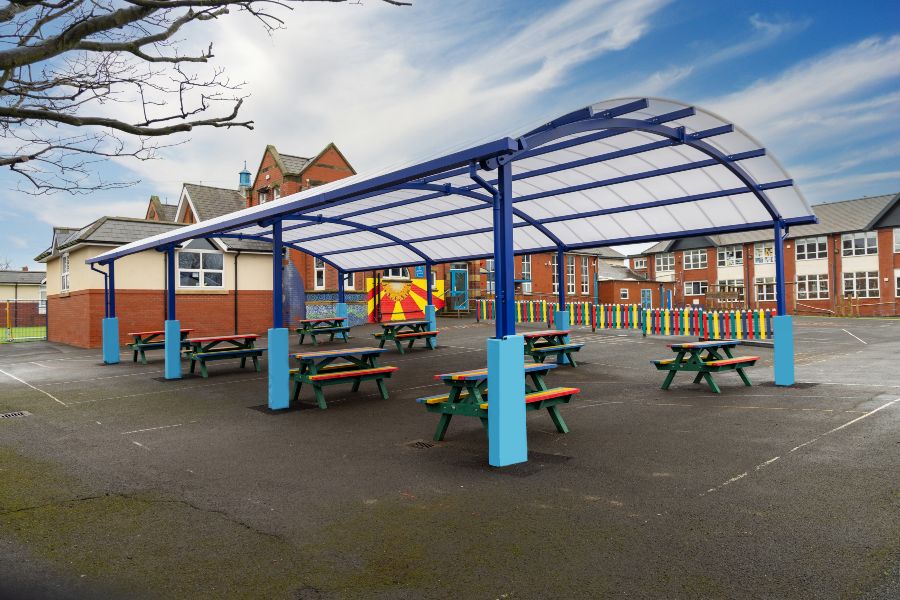

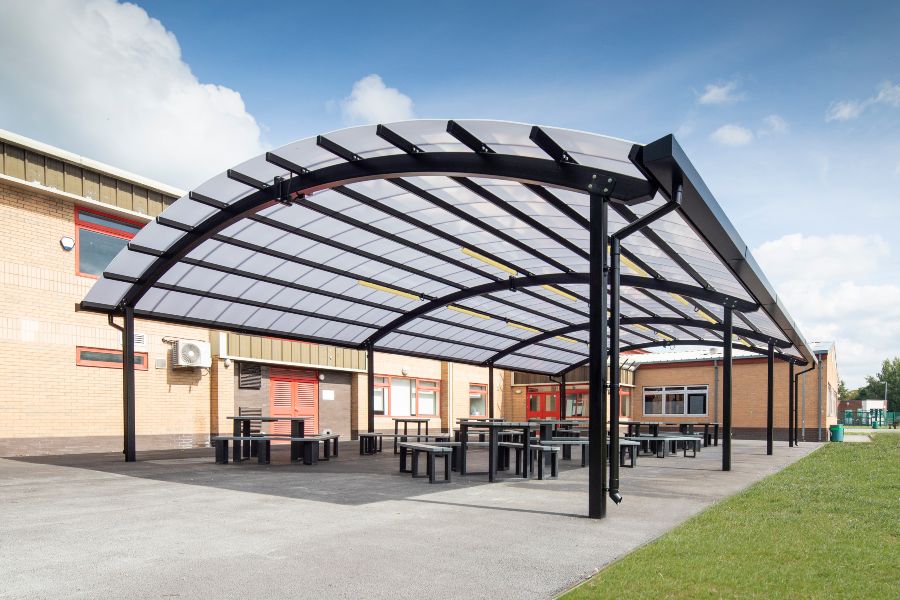

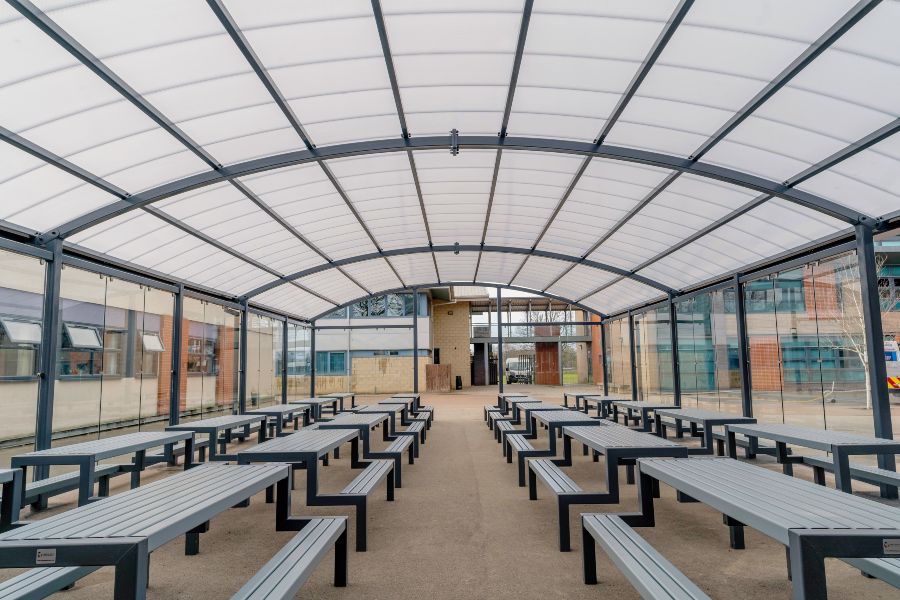

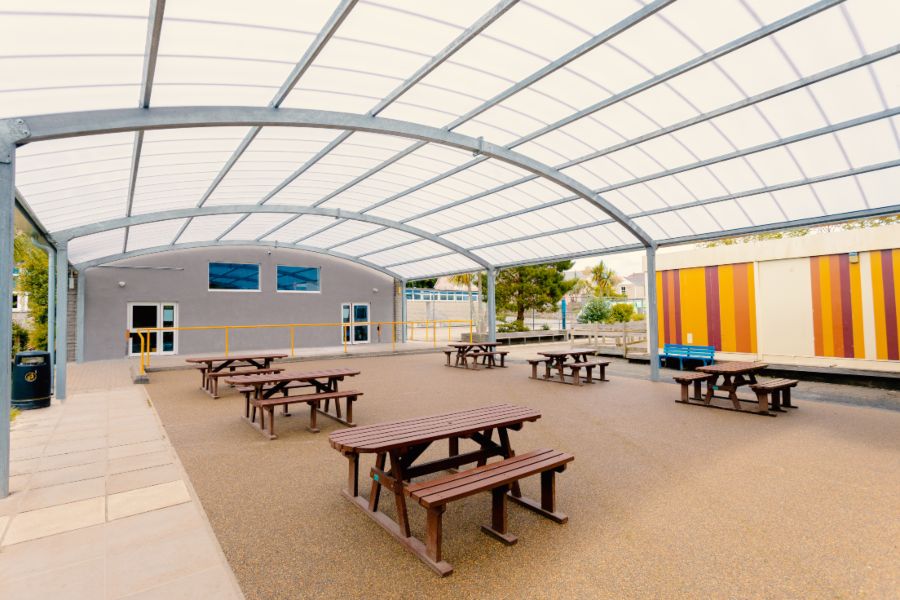

The ‘Duo™’ is our duopitch (symmetric) curved roof variant - this is where both sides are at the same height, the most common configuration for standalone structures or structures against low roofline buildings. Ideal for covered walkways, playgrounds and outdoor dining areas.
- Symmetric curved roof design
- Solid steel framework
- Genuine polycarbonate roofing
- Finished in Dura-coat™ finish
- Wide range of side panel and door options
Specification
MATERIALS
Structure – All steel
Roofing – Polycarbonate
Finish – Galvanised only or Dura-coat™ colour finish
Side Panels – Polycarbonate or glass
DIMENSIONS
Virtually any available, most cost-effective widths are: 2000mm, 3000mm, 4000mm, 5000mm, 6000mm. Standard lengths are at 700mm increments but any length is possible. Post centres are typically 4000mm (up to 5000mm). However, virtually any dimensions are available. Please enquire in all instances – we can accommodate nearly every situation.
OPTIONS
– Side panels with various infill options
– Various door options
– Clear or opal roofing
– Aluminium guttering and downpipes
– Wall brackets
– Wide span beams
– CHS uprights
– Post pads
SPECIFICATION CLAUSE
To supply and install to manufacturer’s recommendations: Motiva Duo™ canopy to overall size —- mm X —- mm (or as per drawing no——-) to include for clear/opal roof, Alu-Tuff™ gutters and downpipes all in Dura-coat™ finish to RAL——- as manufactured by A&S Landscape, March Way, Battlefield Enterprise Park, Shrewsbury, SY1 3JE T:01743 444100 E:[email protected]
Appearance

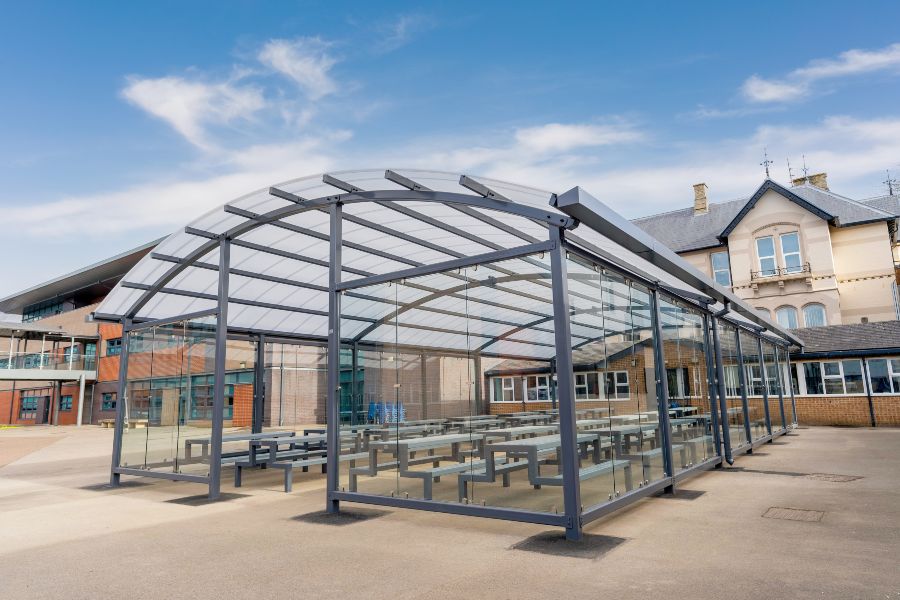

Steelwork on the Motiva Duo™ canopy is finished in Dura-coat™ colour finish to any RAL colour. The aluminium gutters and downpipes are also finished to match. Polycarbonate roof covering can either be clear or opal as standard. Post pads can be any colour, often contrasting with the structure. Side panels in polycarbonate or glass.
Services
The A&S Landscape service includes full site surveys, CAD drawings and project management as standard. We would recommend early consultation in order to consider all aspects of the proposed installation. Early technical involvement can generally provide a better solution. We provide free quotations and technical information at the design stage with drawing files of all details which can be easily incorporated into architects’ drawings.
BESPOKE PRODUCTS
Our ability to extensively customise our products ensures that we can meet any special requirements that you may have. Our flexible modular system often allows this to be done very economically whilst retaining the performance characteristics of our system.
Standard Steel Colours (Any RAL colour available)
White
- RAL NO. 9010
Signal Yellow
- RAL NO. 1003
Brown Red
- RAL NO. 3011
Traffic Red
- RAL NO. 3020
Squirrel Grey
- RAL NO. 7000
Ultramarine Blue
- RAL NO. 5002
Gentian Blue
- RAL NO. 5010
Sapphire Blue
- RAL NO. 5003
Slate Grey
- RAL NO. 7015
Moss Green
- RAL NO. 6005
Signal Green
- RAL NO. 6032
Jet Black
- RAL NO. 9005
Polycarbonate Colours
Transparent
Opal
Accreditations

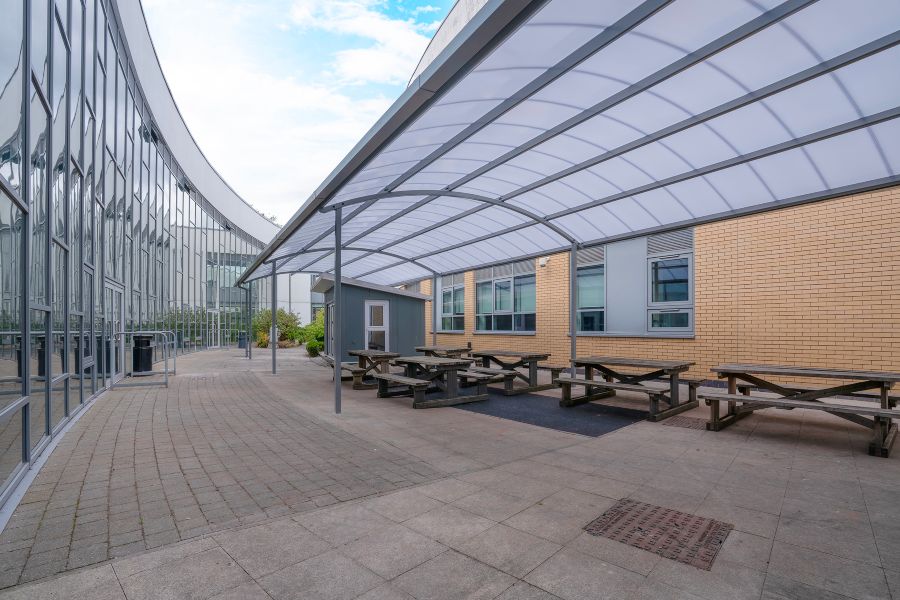

Communication with A&S Landscape was exemplary, very professional from start to finish.
- Co-op Academy Failsworth
View Project
Get in touch to request a copy of our full, 160 page, hardback brochure with all the information you need to make the right choice.
