Motiva Wave™

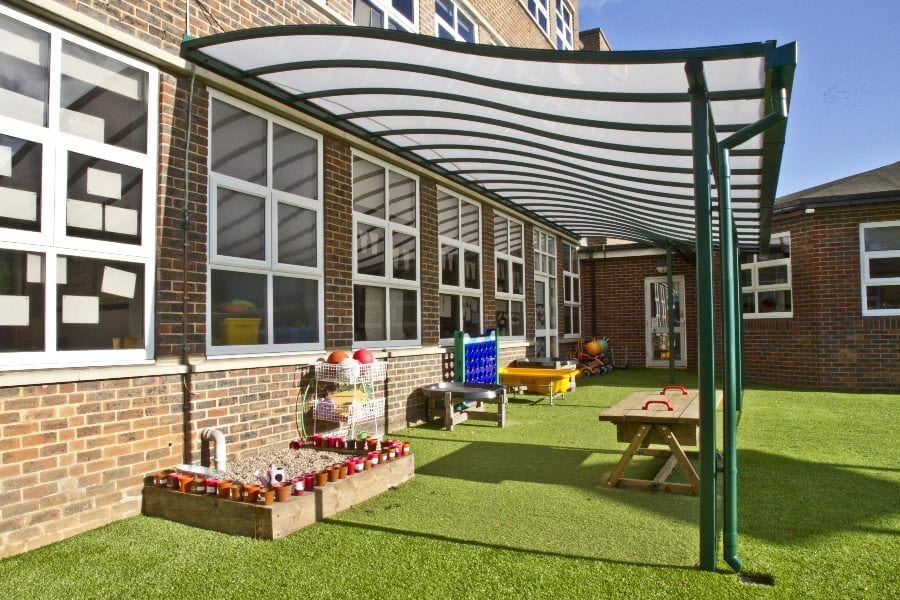

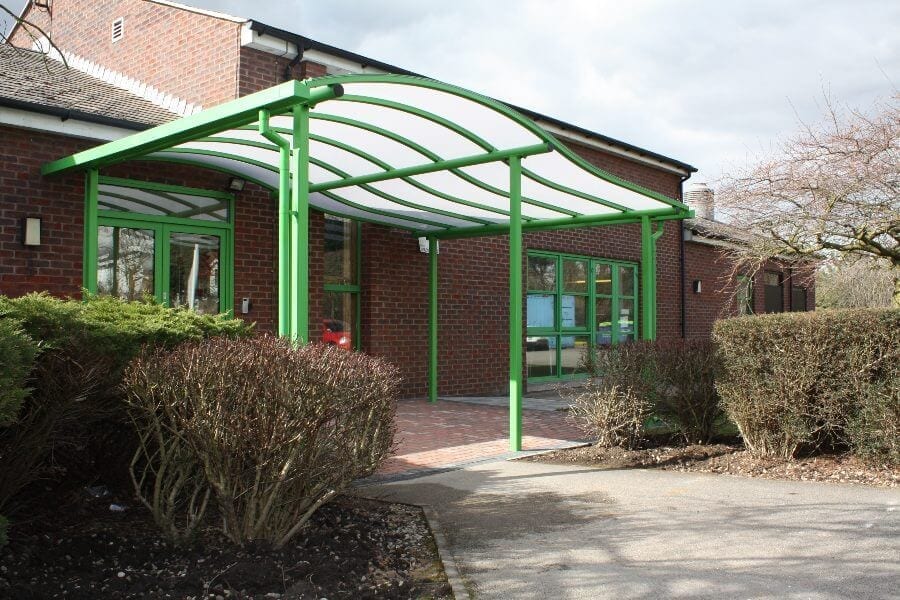

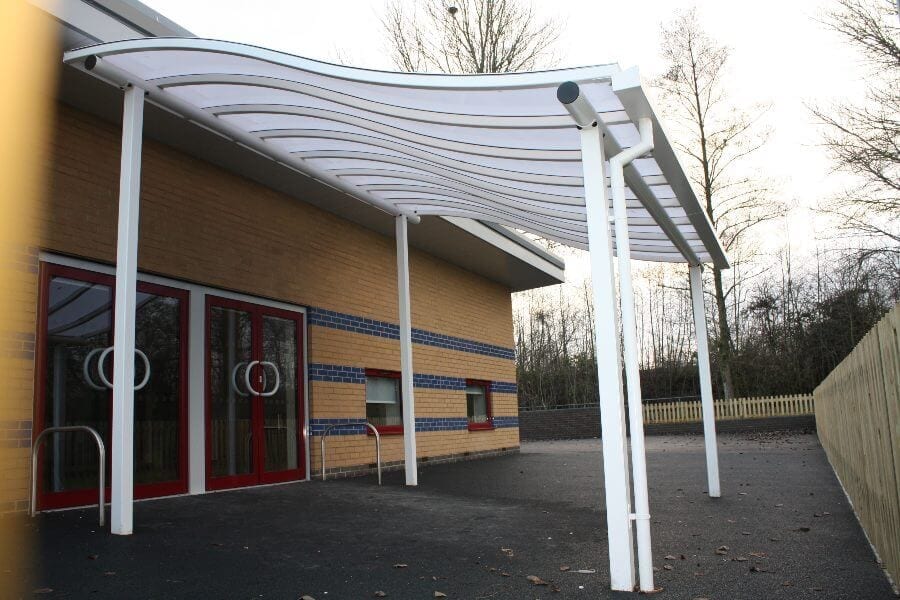

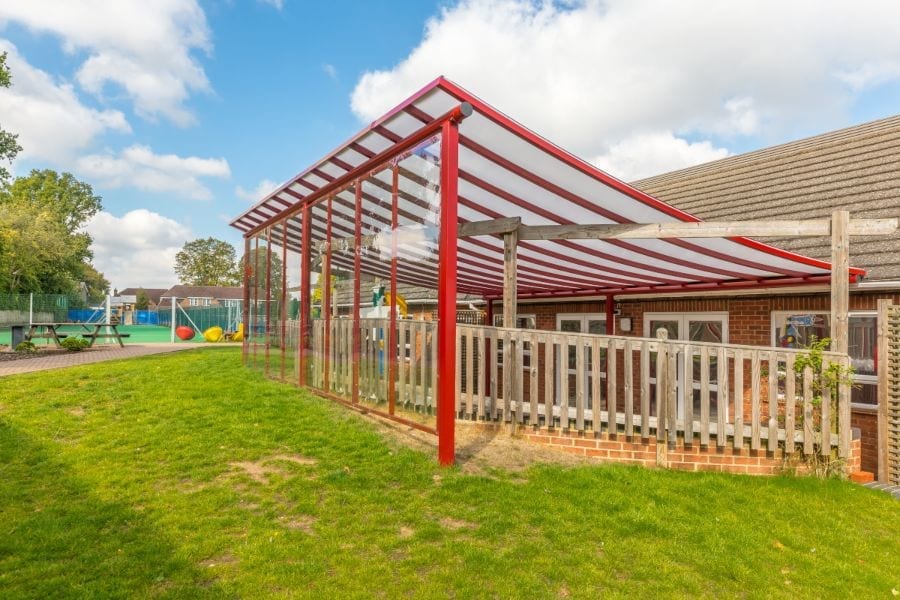

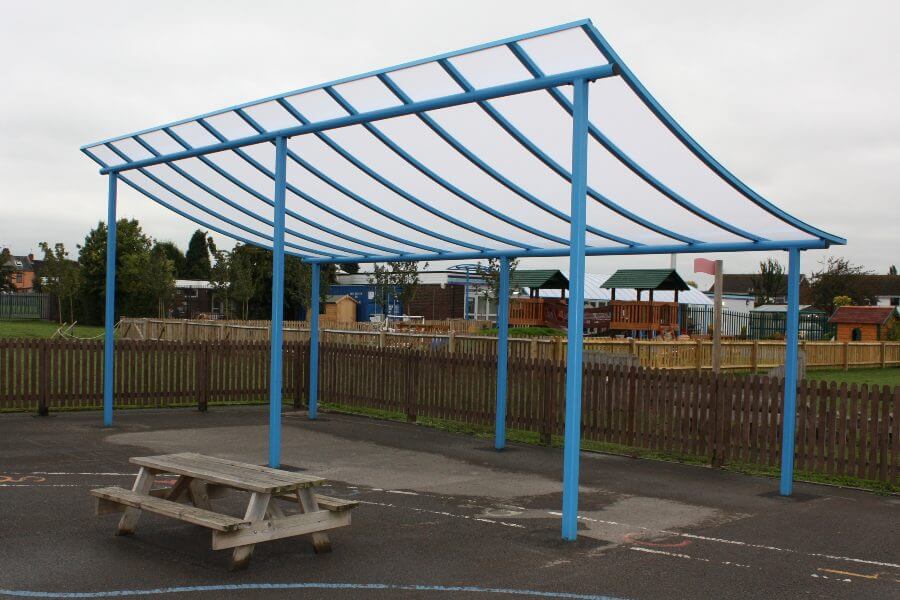

The ‘Wave’ is a monopitch or duopitch roof variant, with all the benefits of our standard designs but with a new and funky look. This is a good solution for buildings with low rooflines, where a standalone unit is required or where you need a canopy with that added wow factor.

  • Wave roof design
  • Solid steel framework
  • Polycarbonate roofing
  • Finished in Dura-coat™ finish
  • Wide range of sizes

Specification

MATERIALS
Structure – All steel
Roofing – Polycarbonate
Finish – Galvanised only or Dura-coat™ colour finish

DIMENSIONS
Virtually any dimensions are available for the Motiva Wave™ canopy. The most cost-effective widths are: 2000mm, 3000mm, 4000mm, 5000mm, 6000mm. Standard lengths are at 700mm increments but any length is possible. Post centres are typically 4000mm (up to 5000mm). In all instances please enquire – we can accommodate nearly any situation.

OPTIONS
– Side panels – various infill options
– Clear, opal or coloured roof
– Aluminium guttering and downpipes
– Wall brackets
– Wide span beams
– CHS uprights
– Post pads

SPECIFICATION CLAUSE
To supply and install to manufacturer’s recommendations: Motiva Wave™ canopy to overall size —- mm X —- mm (or as per drawing no——-) to include for clear/opal/coloured roof, Alu-Tuff™ gutters and downpipes all in Dura-coat™ finish to RAL——- as manufactured by A&S Landscape, March Way, Battlefield Enterprise Park, Shrewsbury, SY1 3JE   T:01743 444100   E:[email protected]

Appearance

Steelwork on the Motiva Wave™ canopy is finished in Dura-coat™ colour finish to any RAL colour. Aluminium gutters and downpipes are finished to match. Polycarbonate roof covering for the canopy is available in either clear or opal as standard. Post pads can be any colour, often contrasting with the structure.

Services

The A&S Landscape Service is second to none. We recommend an early consultation so that all aspects of the proposed installation can be considered. We provide free quotations and technical information at the design stage with drawing files of all details which can be easily incorporated into architects’ drawings. Full site surveys, CAD drawings and project management are all part of our standard service. Early technical involvement can generally provide a better solution.

BESPOKE PRODUCTS
The modular nature of our systems often allows us to extensively customise our products to ensure that we can meet any special requirements. This can be done very economically whilst retaining the performance characteristics of our system.

Standard Steel Colours (Any RAL colour available)

Anthracite Grey
- RAL NO. 7016

White
- RAL NO. 9010

Signal Yellow
- RAL NO. 1003

Brown Red
- RAL NO. 3011

Traffic Red
- RAL NO. 3020

Squirrel Grey
- RAL NO. 7000

Ultramarine Blue
- RAL NO. 5002

Gentian Blue
- RAL NO. 5010

Slate Grey
- RAL NO. 7015

Moss Green
- RAL NO. 6005

Signal Green
- RAL NO. 6032

Jet Black
- RAL NO. 9005

Polycarbonate Colours

Clear Polycarbonate

Transparent

Opal Polycarbonate

Opal
