Barrel Vault Canopies

A Barrel Vault Canopy is also known as a tunnel vault, or a wagon vault. It is formed by the extrusion of a single curved along a given distance. The curves are typically circular, creating a semi-cylindrical appearance.

Our Motiva Duo curved roof canopy is often described as a ‘Barrel Vault Canopy’ or ‘Barrel Vaulted’ and can be made to any radius to suit your requirements. (Designers need to consider water run-off.) The Motiva Duo is our Duopitch (symmetric) curved roof canopy – where both sides are the same height.

The main features and benefits of a Barrel Vault canopy include:

  • Symmetric curved roof design
  • Solid steel framework
  • Genuine polycarbonate roofing
  • Finished in Dura-coat™ finish
  • Wide range of sizes


Barrel Vault Canopy Options

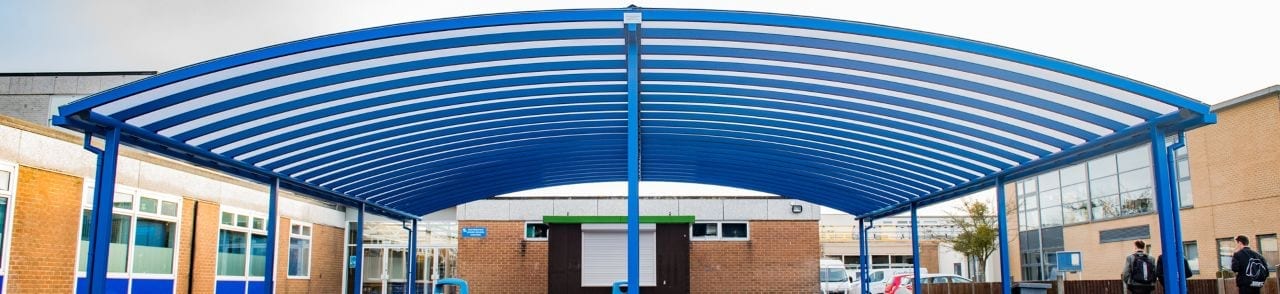

  • Tewkesbury School Curved Roof Canopy
The ‘Duo™’ is our duopitch (symmetric) curved roof variant - this is where both sides are at the same height, the most common configuration for standalone structures or structures against low roofline buildings. Ideal for covered walkways, playgrounds and outdoor dining areas.

Motiva Duo™ Click for more info

  • Shelter we fitted at Cirencester College
Cirencester College is a sixth form setting providing the stepping stone between school, and university, apprenticeships or employment.

Cirencester College add More Than 100 Seats Under an Outdoor Canopy Click for more info

  • Two Curved Roof Canopies
The ‘Duo Double™’ is normally twin units of our ‘Duo’ canopy although multiples of Duo, Mono, Linear or Wave can be used in many configurations to cover any size of area. This canopy is perfect for larger play areas or for outdoor dining in secondary schools.

Motiva Duo Double™ Click for more info
