Motiva Linear Lite™

The ‘Linear Lite’ is an aluminium version of our popular Motiva Linear™ design suitable for lower duty applications such as some hospitality uses and even some educational environments. The Linear Lite is particularly suited to applications where wall mounting is possible one side but independent versions are available. This monopitch (asymmetric) straight roof variant is where one side is higher than the other. This is the standard configuration for canopies located against building elevations but also used for many applications including walkways and outdoor play areas. Widths of up to 4000mm are standard with this product but up to 7000mm is available if required. Any RAL colour is available for the frame - however a surcharge will apply for a non-standard colour.

  • Straight roof design
  • Integral gutters and RWPs
  • Aluminium framework
  • Glass or polycarbonate options

Specification

MATERIALS
Structure – Aluminium
Roofing – Polycarbonate or glass
Finish – One standard PPC colours (any RAL colour available)

DIMENSIONS
Virtually any dimensions are available with the Motiva Linear Lite™, most cost-effective widths are 2000mm, 3000mm, 4000mm, 5000mm, 6000mm. Standard lengths are at 1000mm increments but any length is possible. Post centres are typically 4000mm (up to 5000mm). In all instances please enquire – we can accommodate nearly any situation.

OPTIONS
– Side panels – various infill options
– Clear, opal and glass roof options
– Aluminium guttering and downpipes
– Wall beam or independent

SPECIFICATION CLAUSE
To supply and install to manufacturer’s recommendations: Motiva Linear Lite™ canopy to overall size —- mm X —- mm (or as per drawing no——-) to include for clear/opal/glass roof, finish to RAL——- as manufactured by A&S Landscape, March Way, Battlefield Enterprise Park, Shrewsbury, SY1 3JE   T:01743 444100   E:[email protected]

Appearance

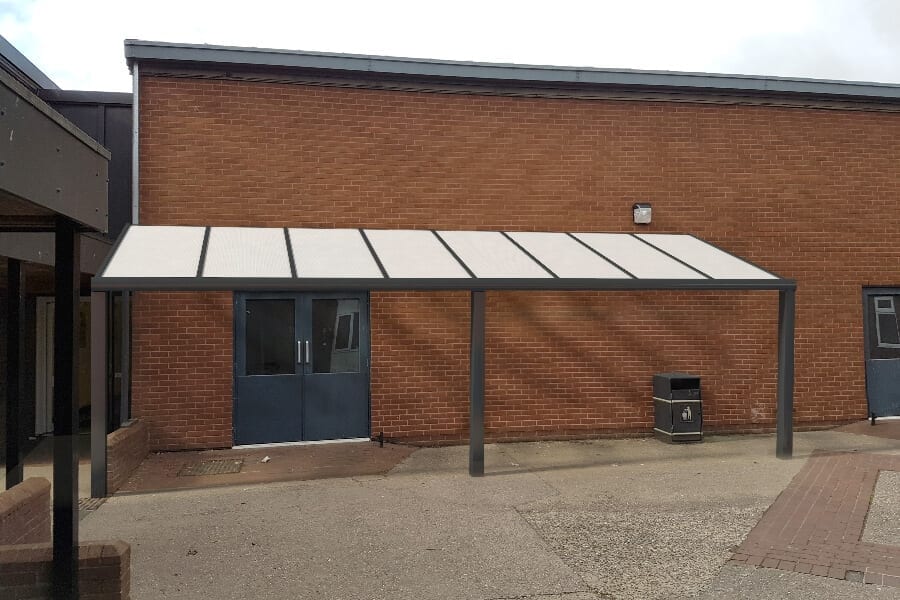

Aluminium on the Motiva Linear Lite™ canopy is finished in PPC colour finish to any RAL colour. Polycarbonate roof covering is either clear or opal as standard or can be coloured at extra cost. Glass would typically be clear. Post pads can be any colour, often contrasting with the structure.

Services

If you are considering the Motiva Linear Lite™ canopy we would recommend an early consultation to consider all aspects of the proposed canopy installation, we provide free quotations and technical information at design stage with drawing files of all details which can be easily incorporated into architects’ drawings. Full site surveys, CAD drawings and project management are all part of our standard service. Early technical involvement in projects can generally provide a better solution.

BESPOKE PRODUCTS
Bespoke products are possible due to our ability to extensively customise our products ensures that we can meet any special requirements that you may have. Our flexible modular system often allows this to be done very economically whilst retaining the performance characteristics of our system.

Non Standard RAL - Available at a Charge

White
- RAL NO.9016

Signal Yellow
- RAL NO. 1003

Brown Red
- RAL NO. 3011

Traffic Red
- RAL NO. 3020

Squirrel Grey
- RAL NO. 7000

Ultramarine Blue
- RAL NO. 5002

Gentian Blue
- RAL NO. 5010

Sapphire Blue
- RAL NO. 5003

Slate Grey
- RAL NO. 7015

Moss Green
- RAL NO. 6005

Signal Green
- RAL NO. 6032

Jet Black
- RAL NO. 9005

Standard Motiva Linear Lite Colours

Anthracite
- RAL NO.7016
