Motiva Verdant™ Timber Canopy

The Motiva Verdant™ canopy is our aesthetically pleasing timber-clad steel shelter solution, with a galvanised or polyester powder coated steel frame complemented by self-coloured timber and steel guttering and downpipes. The polycarbonate canopy roofing has a fire rating to Euroclass UNI EN 13501-1: B-s1, d0 and is impact rated ‘Class B’ to ACR (M) 001:2005 non-fragile roof light standard. The Motiva Verdant™ can also be supplied with steel sheet roofing and/or adapted for PV panel integration. It is ideal for forming walkways, play areas, covered seating or dining areas and is available with clear, opal or coloured polycarbonate roofing or with steel sheet roofing in a wide range of colours.

Solid steel framework
Freestanding contemporary design
Asymmetric straight polycarbonate roof design
Wide range of sizes
Bespoke designs on request to enclose the space

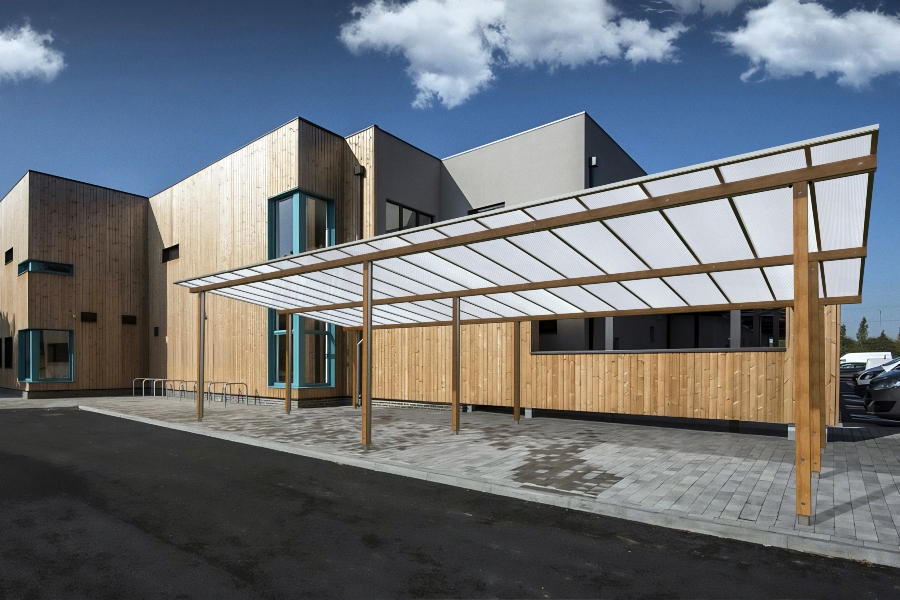

Design can be supplied for solar integration

View Gallery

Specification

MATERIALS

Structure – Steel and Timber

Roofing – Polycarbonate

Finish – Galvanised steelwork, and self-coloured timber

DIMENSIONS

Virtually any dimensions are available with the Motiva Verdant™, most cost effective widths are 2000mm, 3000mm, 4000mm, 5000mm, 6000mm. Standard lengths are at 700mm increments but any length is possible.

Post centres are typically 4000mm (up to 5000mm). In all instances please enquire – we can accommodate nearly any situation.

OPTIONS

Side panels – various infill options – Clear, opal and coloured roof – Steel guttering and downpipes – Wall brackets – Wide span beams – CHS uprights – Product supplied with or adapted for solar integration

SPECIFICATION CLAUSE

To supply and install to manufacturer’s recommendations: Motiva Verdant™ to overall size —- mm X —- mm (or as per drawing no ——-) to include for clear/opal/coloured roof, steel gutters and downpipes ——- as manufactured by A&S Landscape, March Way, Battlefield Enterprise Park, Shrewsbury, SY1 3JE T: 01743 444100 E: [email protected]

Appearance

The Motiva Verdant™ timber canopy features a galvanised or polyester powder coated steel frame, complemented by self-coloured timber. Steel gutters and downpipes are finished to match. Our superior polycarbonate roof covering is available in clear or opal as standard, with coloured options available at an additional cost.

Services

If you are considering the Motiva Verdant™ timber canopy we would recommend an early consultation to consider all aspects of the proposed canopy installation, we provide free quotations and technical information at design stage with drawing files of all details which can be easily incorporated into architects’ drawings. Full site surveys, CAD drawings and project management are all part of our standard service. Early technical involvement in projects can generally provide a better solution.

BESPOKE PRODUCTS
Bespoke products are possible due to our ability to extensively customise our products ensures that we can meet any special requirements that you may have. Our flexible modular system often allows this to be done very economically whilst retaining the performance characteristics of our system.
