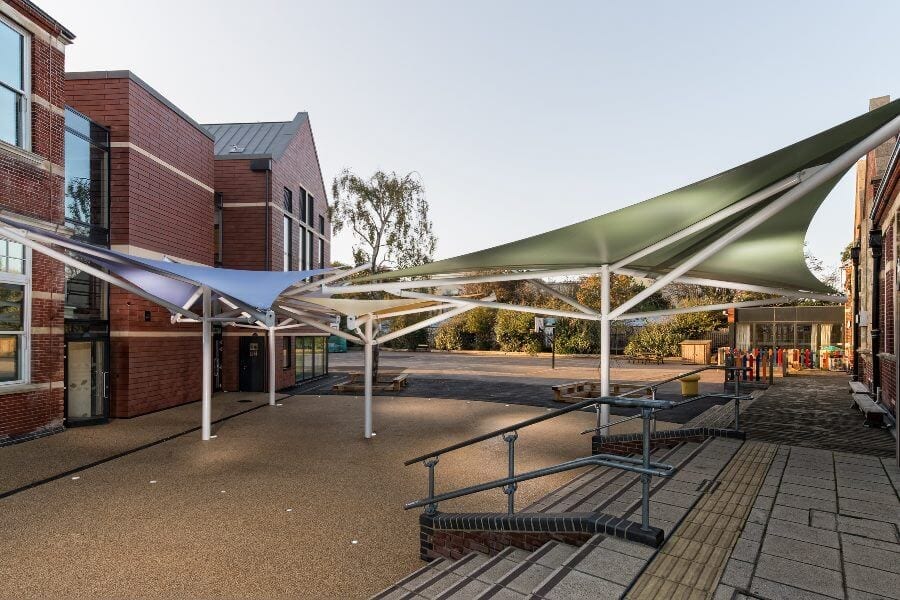

Milton Park Primary School Fabric Shade Sails

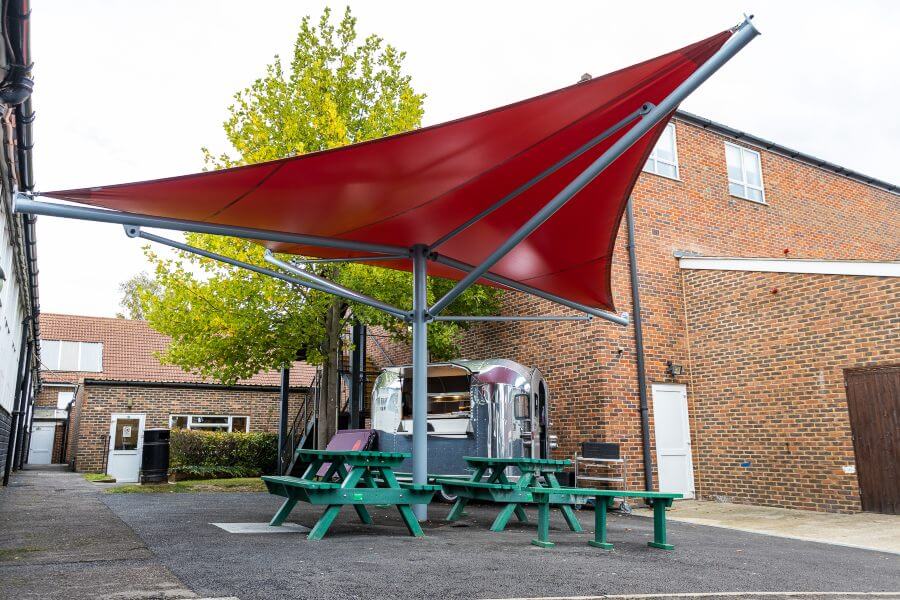

Fabric canopy we designed for Hillview School for Girls

Maxima StarSail®

Access BIM Models & Spec

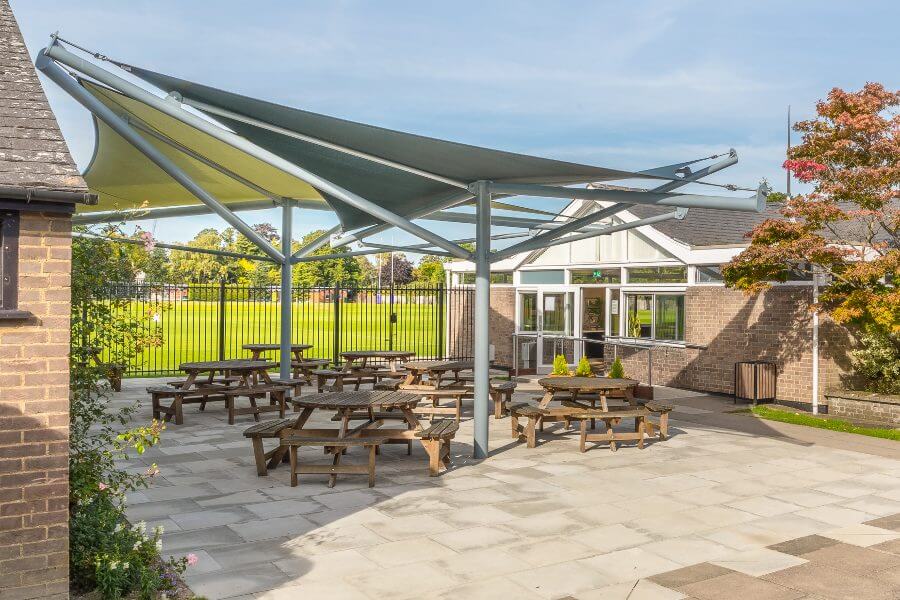

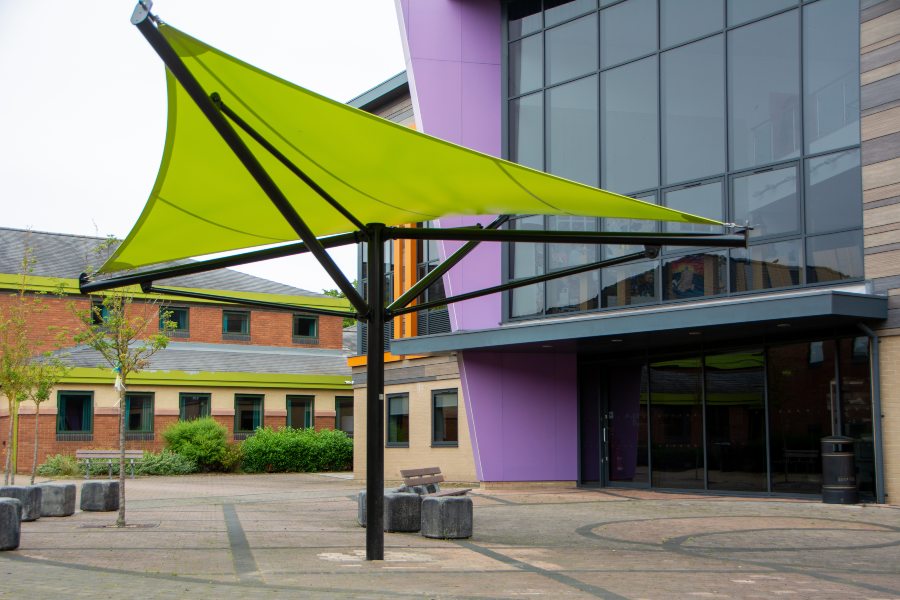

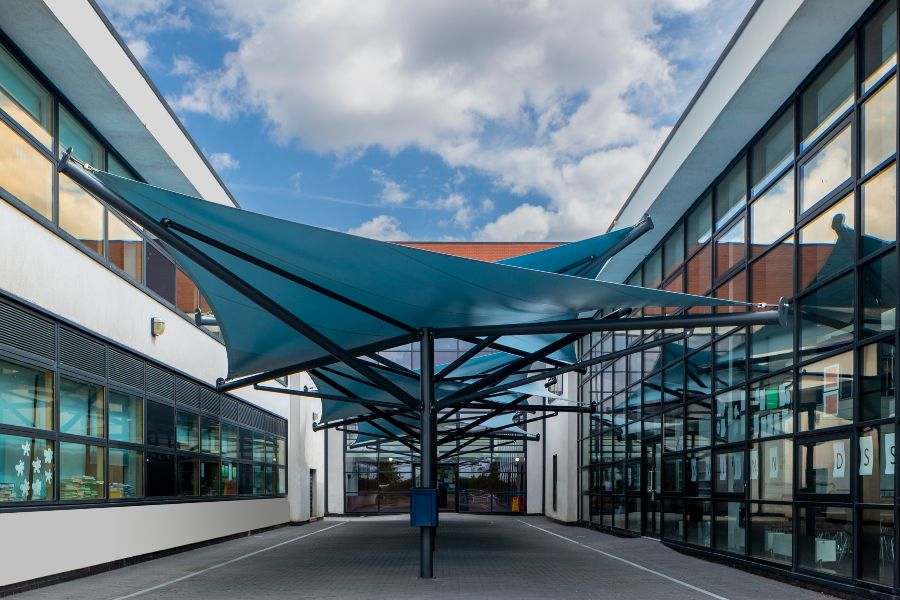

The StarSail® from Maxima is a spectacular combination of a Shade Sail and Umbrella design around a centre post, a trendy new and innovative design the StarSail™ promotes a cool and breezy look.

Modern functional design
Shade cloth or waterproof fabrics
Longest guarantees in the market
Framework finished in Dura-coat™ finish
Wide range of colours

View Gallery

Specification

TYPICAL APPLICATIONS
The StarSail® shade sail is ideal for a variety of applications including:
– Play Area shade
– Plaza Areas
– Restaurants and Pubs
– College and University grounds
– Public spaces

FRAMEWORK
Frame manufactured to suit size and application. All steelwork is galvanised only or in Dura-coat™ finish to any RAL colour.

FOUNDATION/INSTALLATION DETAIL
Uprights for the StarSail™ can be root fixed, base plate fixed onto preformed bases or installed into precast sockets. Please speak to our technical department for more information.

CONFIGURATION
The StarSail™ is a square design with 2 high and 2 low points.

SIZE OPTIONS
Any size up to 8000mm x 8000mm.

SPECIFICATION CLAUSE
To supply and install to manufacturer’s recommendations: Maxima StarSail™ to overall size —- mm X —- mm (or as per plan no——-) to include for shadecloth/waterproof fabric, Dura-coat™ finish steel frame to RAL—— as manufactured by A&S Landscape, March Way, Battlefield Enterprise Park, Shrewsbury, SY1 3JE T:01743 444100 E:[email protected]

Appearance

Steelwork is galvanised only or finished in Dura-coat™ colour finish to any RAL colour. Shade cloth material is available in 14 colours, PVC fabric available in 40 colours. Post pads can be any colour, often contrasting with the structure.

FABRIC OPTIONS
Shade Cloth – The StarSail® utilises high-quality knitted shade cloth specifically developed as a strong and stable outdoor fabric for use in tension structures. It offers a combination of strength, durability and value and offering 90-98 % UV protection. Available in 14 colours.
PVC Fabric – High strength waterproof fabric offering increased lifespan available in 40 colours.

Services

When it comes to the installation of the StarSail® we recommend early consultation to consider all aspects of the proposed installation. Here at A&S Landscape, we provide free quotations and technical information at the design stage with drawing files of all details which can be easily incorporated into architects’ drawings. Our standard service includes full site surveys, CAD drawings and project management are all part of our standard service. Early technical involvement can often improve design, aesthetics and cost.
